Fuel dispenser with single nozzle and single pump

FOB Reference Price:Get Latest Price
US $1,100-1,530 / Units | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Changlong
Model Number:
DJY-218A
Condition:
New
After-sales Service Provided:
No overseas service provided
side panel material:
painting Steel or stainless steel
color:
can be optional
size:
can be made according to your requirement
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
STANDARD EXPORTED CARTON
Port
NINGBO / SHANGHAI
Lead Time :
within 25 days



Product Description
 MODE       PRODUCTNOZZLEDISPLAYMOTORPUMPFLOW METERREMARK

DJY-218A



112111
DJY-121A122112Two nozzles can fuel at the sam time.
DJY-122B122111one nozzle is fueling, the other can not fuel simultaneously.
DJY-222A224222two nozzles can fuel at the same time, with different products.
DJY-241A244224

four nozzles can fuel at the same time.

DJY-242B244222two nozzles are fueling, the other two cannot fuel simultaneouly.
DJY-142C142111comparing with DJY-122B, this type adds 2 decorative nozzles, other functions are same.



CHANGLONG FUEL DISPENSER:

1.  Adopting combination pump or separate pump,smaller shape and convenient maintenance.

2.  Adopting painting-side for common type and stainless steel side for luxurious type .

3.  Leading-static and Highly-hang oil pipe.

4.  Features fueling as ration,resetting by computer and re-displaying when power cut.

5.  Big-size aluminium nozzle booter.

6.  Submersible pump to be optional.

7.  Flow meter features high precision and strong reliability.

8.  Excellent electromagnetic compatibility and strongly anti-jamming.

9.  Be capable of connecting with central computer in gas station.

10.  Conveniently combining and extending function.

11.  To update IC card fuel dispenser.



Technical Index and parameter:

Ambient temperature: -40°c ~ +55 °c
Humidity:  30% ~ 90%
Max flow: 50L/min or 90L/min
Accuracy: 0.3%
Repeating error: ≤ 0.15%
Inlet pressure : ≥54K pa
Outlet pressure: ≤0.3M pa
Power: 220V 50/60Hz (3800V to be optional)
Noise:  ≤80dB(A class)
Unit price range : 0.01~99.99
Single volume range : 0.01~9999.99
Accumulative volume range:  0.01~99999999999.99
Explosion-proof certifcate : CE011195
Explosion-proof sign : Exdm IIAT3

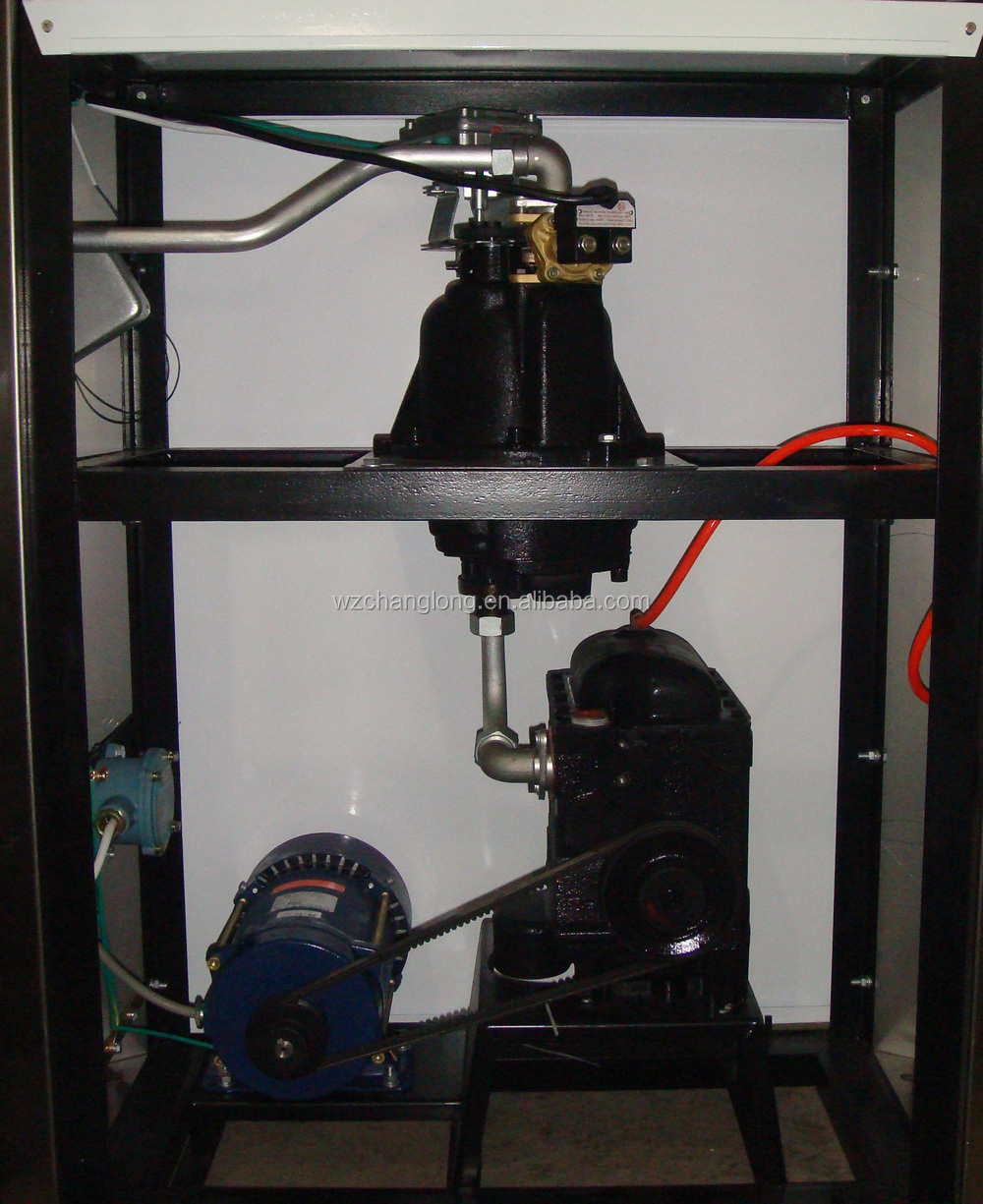

INSIDE LOOKING WITH BENNENT COMPONENT:

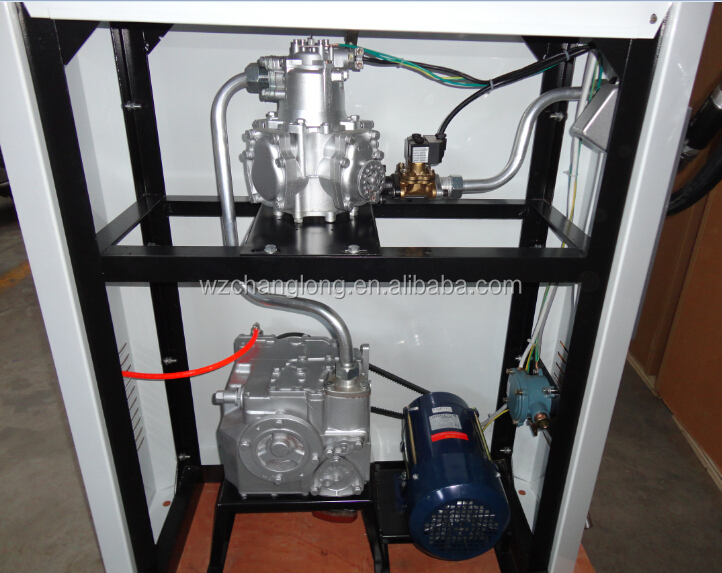

INSIDE LOOKING WITH TOKHEIM COMPONENT:

.JPG



INSIDE LOOKING WITH TATSUNO COMPONENT:
